SENTINEL: Enhancing Worker Safety with Advanced Wearable Technology
Real-Time Location Tracking and Vital Health Monitoring for a Safer Workforce
SENTINEL is designed to safeguard both personnel and assets in the field by providing real-time tracking and vital health monitoring. This wearable solution combines high-accuracy tracking with health data monitoring, ensuring personnel safety and asset security, no matter where you are.
Features:
> Indoor Tracking Accuracy 30 - 60 cm
> Outdoor Tracking Accuracy 100 - 200 cm
> SOS & Fall Alert
> Path Tracking & Analysis
> Heartrate & SpO2 Monitoring
> Body Temperature Monitoring
> Geofence alerts
> Compliance Reporting
SENTINEL comprises of Hardware & User-Friendly Software
SENTINEL Hardware Component

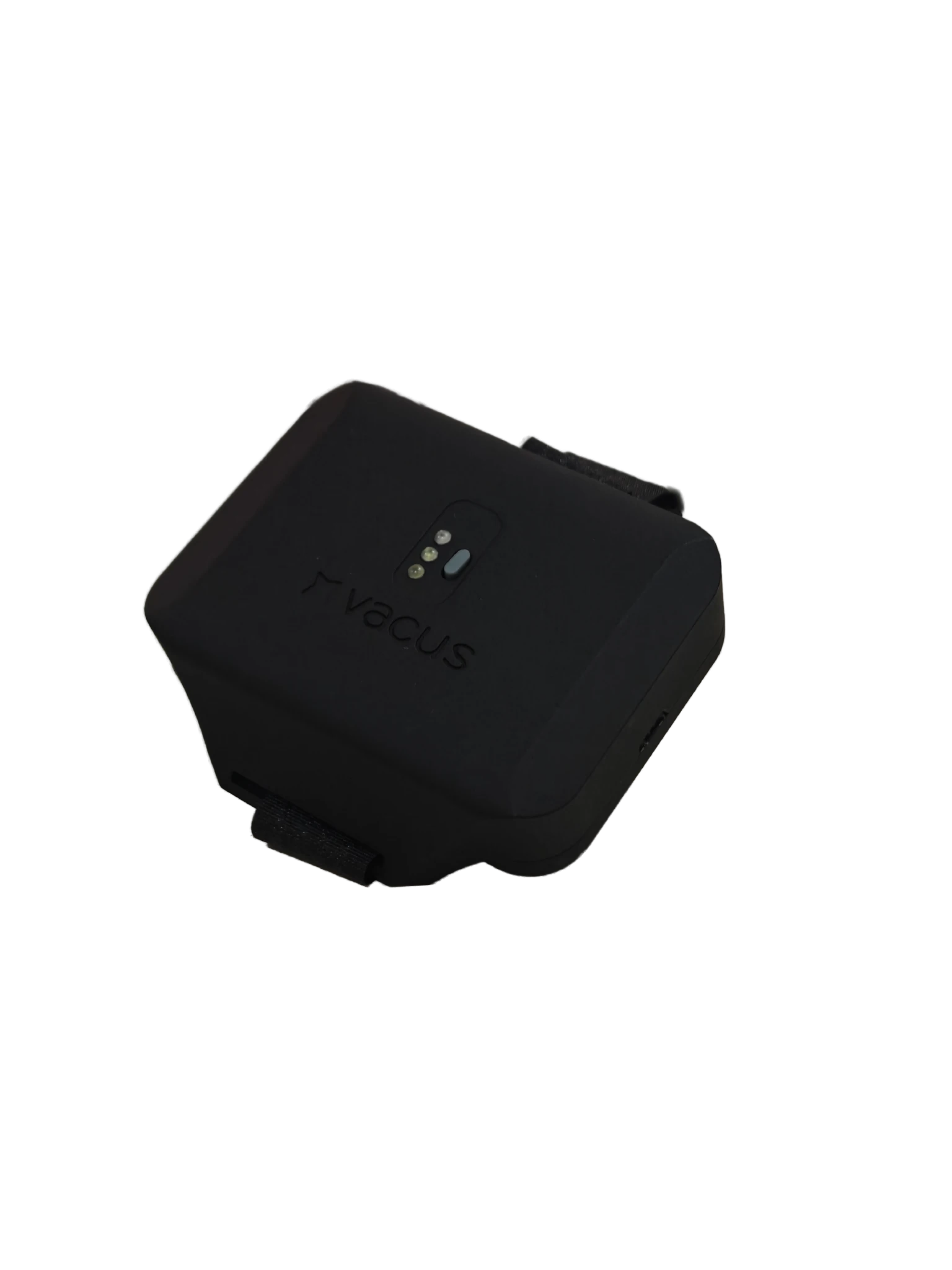

Wearable Wrist Band
The Wearable Wristband provides accurate indoor and outdoor tracking, along with precise monitoring of vital health parameters, including heart rate, SpO2 levels, and body temperature. Equipped with an SOS button and accidental fall detection, the wristband enhances personal safety by delivering real-time alerts. Additionally, it features audio notifications for geo-fence breaches or proximity alerts near specific equipment, offering an added layer of security and situational awareness for on-field personnel.

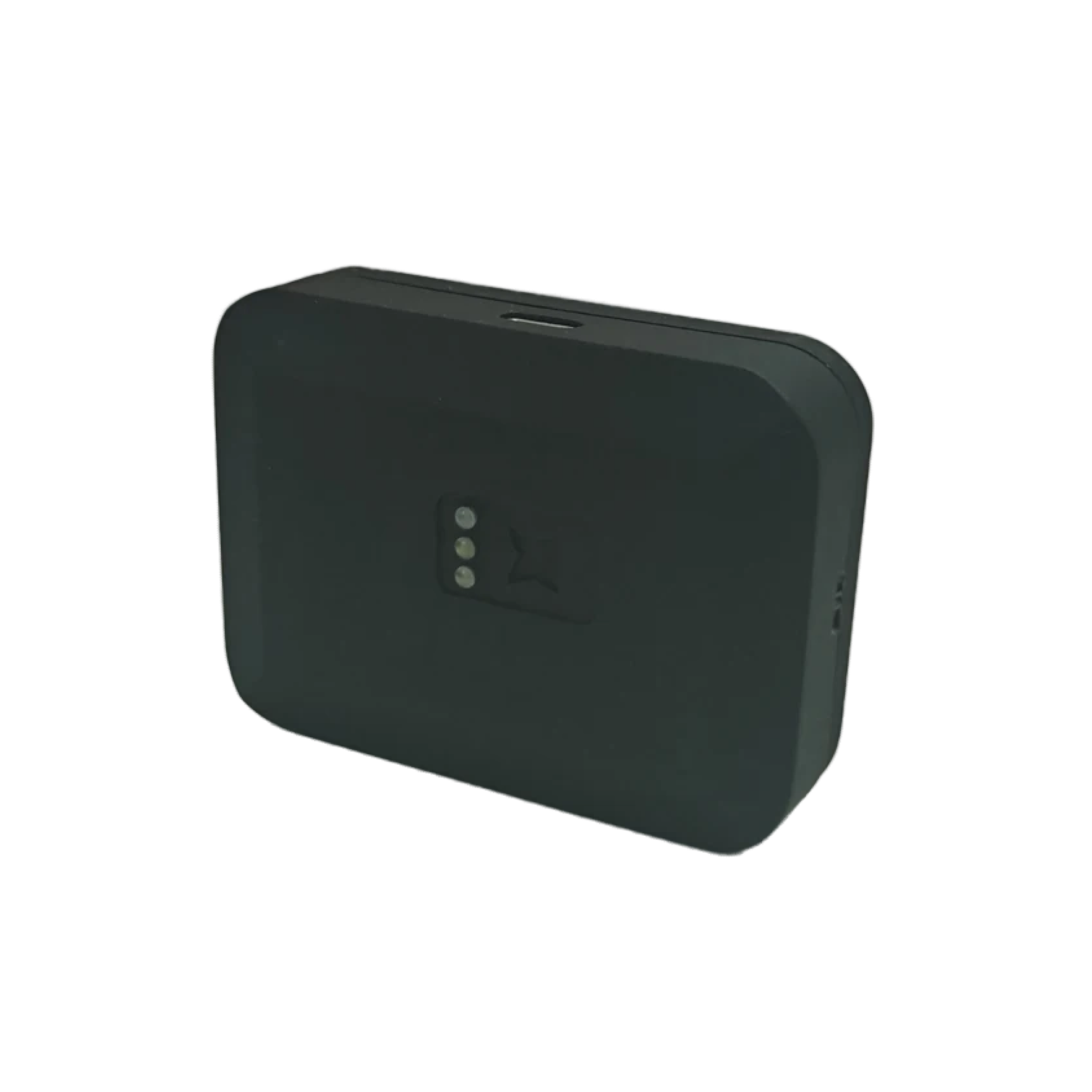

Asset Tag
The Asset Tag enables accurate indoor and outdoor tracking, ensuring reliable asset location monitoring. It includes a tampering feature that triggers an alert if the tag is removed or interfered with. The tag is motion-activated, allowing it to efficiently detect movement and provide timely updates, making it an essential tool for secure and responsive asset management.

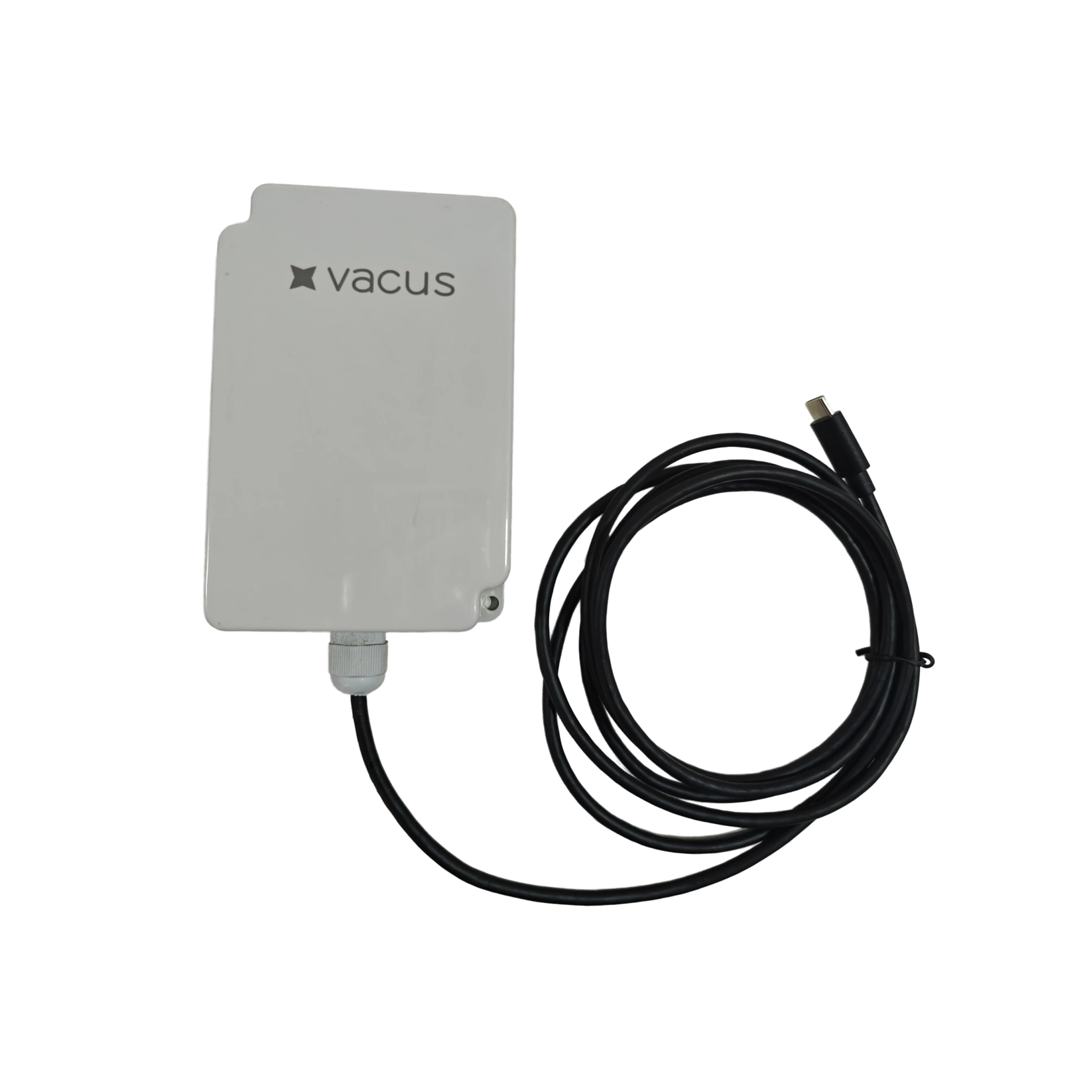

Indoor Anchor Node (Range: 15 - 20 meters)
The Indoor Anchor Node offers a typical range of 15 to 20 meters, ideal for precise tracking within indoor environments. Wearable and asset tags use the signal information received from these anchor nodes to accurately determine their location. The anchor nodes can be powered either through a mains connection or via Power over Ethernet (PoE), providing flexible installation options for various indoor settings.
Outdoor Anchor Node (Range: 80 - 100 meters)
The Outdoor Anchor Node provides an extended range of 80 to 100 meters, making it suitable for accurate location tracking in outdoor environments. Typically installed at a height of 6 to 10 meters, these anchor nodes facilitate precise positioning by transmitting signal information to wearable and asset tags. The nodes are designed for robust performance in outdoor conditions, enabling reliable tracking across larger areas.

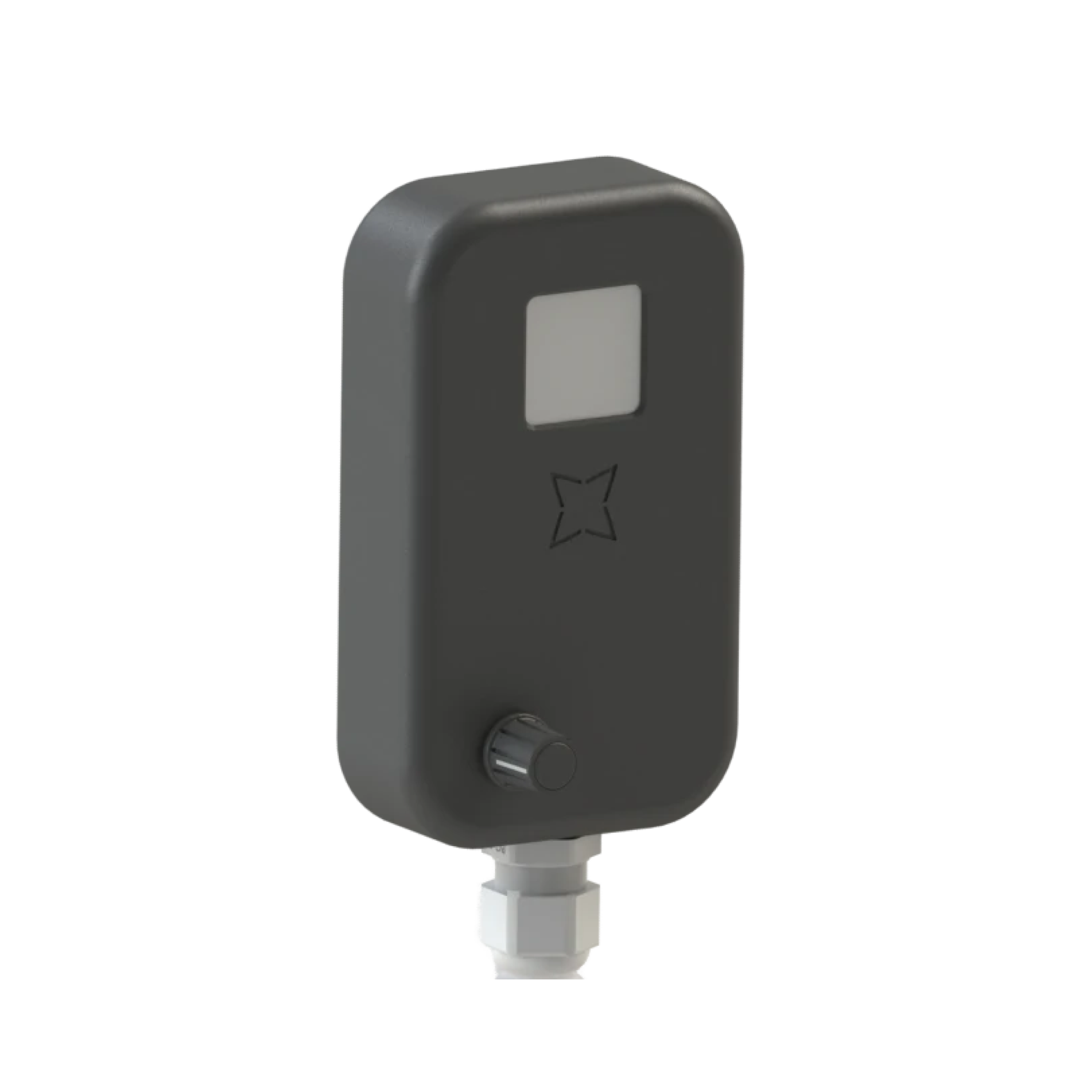

Vehicle Anchor Node
The Vehicle Anchor Node is designed for installation on moving vehicles, such as forklifts and heavy-duty machines, to help maintain safe distances. It features an adjustable knob for setting threshold distances, along with a small e-ink display to easily view and configure settings. If a wearable device breaches the set distance threshold, the anchor node generates an audio alert, ensuring safety for both operators and nearby personnel. Powered through the vehicle's ignition, the Vehicle Anchor Node provides a reliable, integrated safety solution for dynamic work environments.
